AXIS M3037-PVE

Përshkrimi

• 360°, 270° or 180° panoramic surveillance

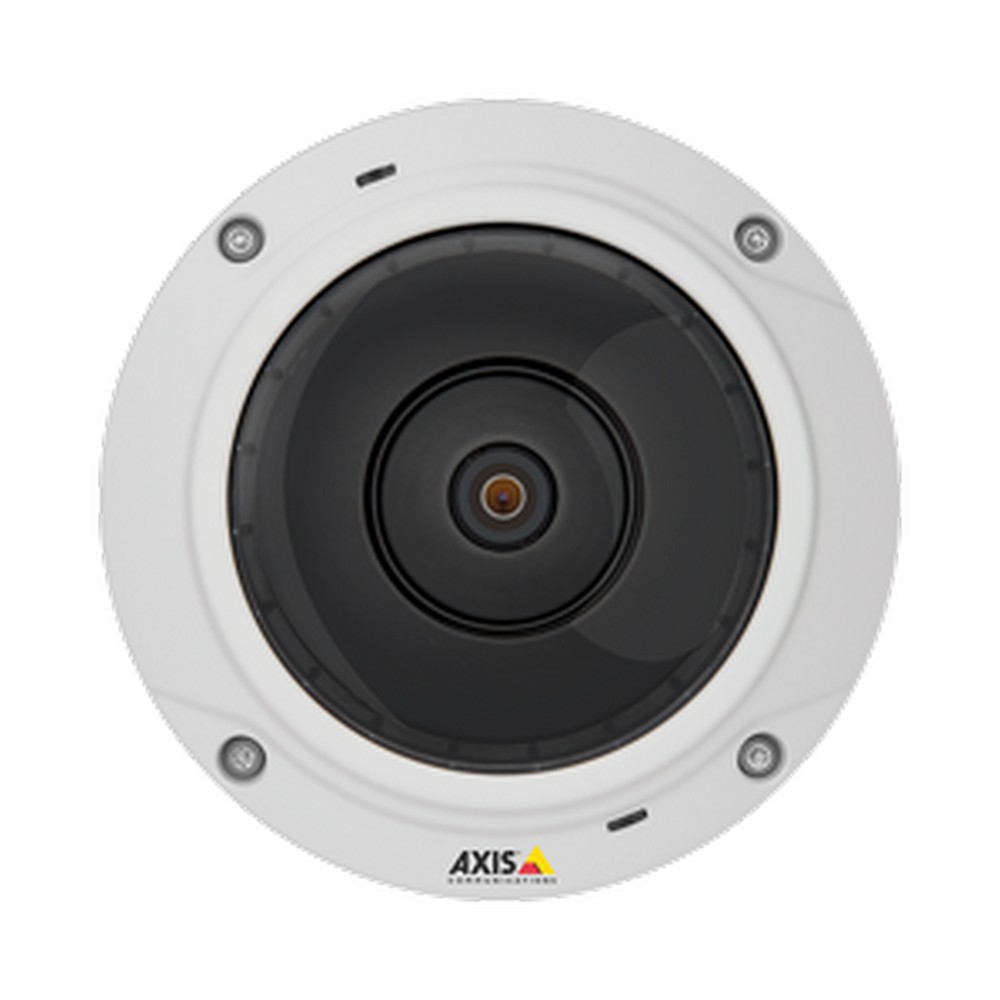

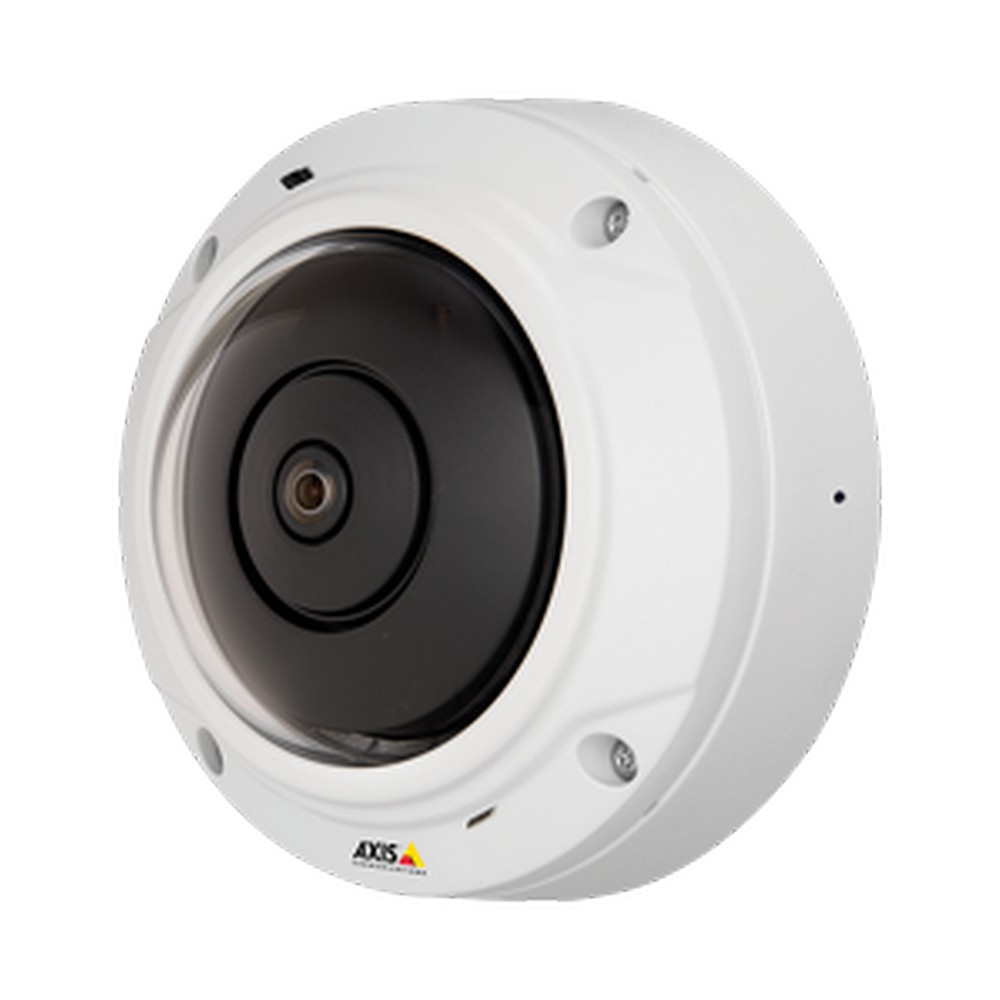

AXIS M3037-PVE Network Camera is a cost-effective video and audio surveillance solution that offers 360/270/180 views, indoors or outdoors, in any light conditions. The compact, vandal-resistant and weather-proof mini dome provides two-way audio with built-in microphone and speaker.

• Different views

AXIS M3037-PVE offers different views: a 360° overview, a 270° corner view, panoramic views and quad views that have been dewarped for easy viewing.

• Advanced audio

AXIS M3037-PVE features built-in, weather-proof microphone and speaker. The camera provides full duplex audio with echo cancellation and noise reduction, and it supports Session Initiation Protocol (SIP) for easy integration with IP phone systems.

• Outdoor-ready, day & night

AXIS M3037-PVE is outdoor-ready and vandal-resistant, with IP66, NEMA 4X and IK10 ratings.

• Easy and flexible installation

AXIS M3037-PVE can be mounted on a wall or ceiling. The factory-focused camera comes with a 2 m (6.6 ft.) network cable attached and is powered using Power over Ethernet, making installation quick and reliable.

• Intelligent video and video management

AXIS M3037-PVE features video motion detection and active tampering alarm. The camera also supports the installation of intelligent video applications, such as people counting and cross line detection.

Technical Specifications

Camera

• Image sensor: 1/3.2” progressive scan RGB CMOS.
• Lens:

• Fixed, 1.27 mm, F2.0, M12 mount, Fixed iris, IR corrected.
• Horizontal field of view: 187°.
• Vertical field of view: 168°.

• Day and night: Automatically removable infrared-cut filter.
• Minimum illumination Color: Color: 0.3-200000 lux B/W: 0.06 lux.
• Shutter time: 1/24500 s to 2 s.
• Camera angle adjustment: Rotation ±180°.

Video

• Video compression:

• 264 Baseline and Main Profile, Motion JPEG.
• 264 (MPEG-4 Part 10/AVC).

• Resolution:

• Overview: 2592×1944 (5 MP) to 160×120.
• Panorama: 1920×720 to 320×120 270° Corner right or left: 1920×720 to 320×120.
• Double Panorama: 1920×1440 to 160×120.
• 270° Corner right and left: 1920×1440 to 160×120.
• Quad view: 1920×1440 to 160×120.
• View area 1-4: 1920×1440 to 160×90.

• Frame rate: 12 fps in 360° overview and panoramic views.
• Video streaming:

• Multiple, individually configurable streams in H.264 and Motion JPEG.
• Controllable frame rate and bandwidth, VBR/MBR H.264.

Network

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, SIP.

General

• Casing: IP66-, NEMA 4X-, and IK10-rated impact-resistant aluminum casing with transparent, polycarbonate cover and dehumidifying membrane, captive screws (Resistorx® 10) Color: white NCS S 1002-B.
• Memory: 512 MB RAM, 128 MB Flash.
• Connectors: Male RJ45 10BASE-T/100BASE-TX PoE on a 2 m (6.6 ft) network cable. Warranty can be maintained even when cable is cut, for more information, contact your Axis partner. Terminal block for 1 alarm input and 1 output.
