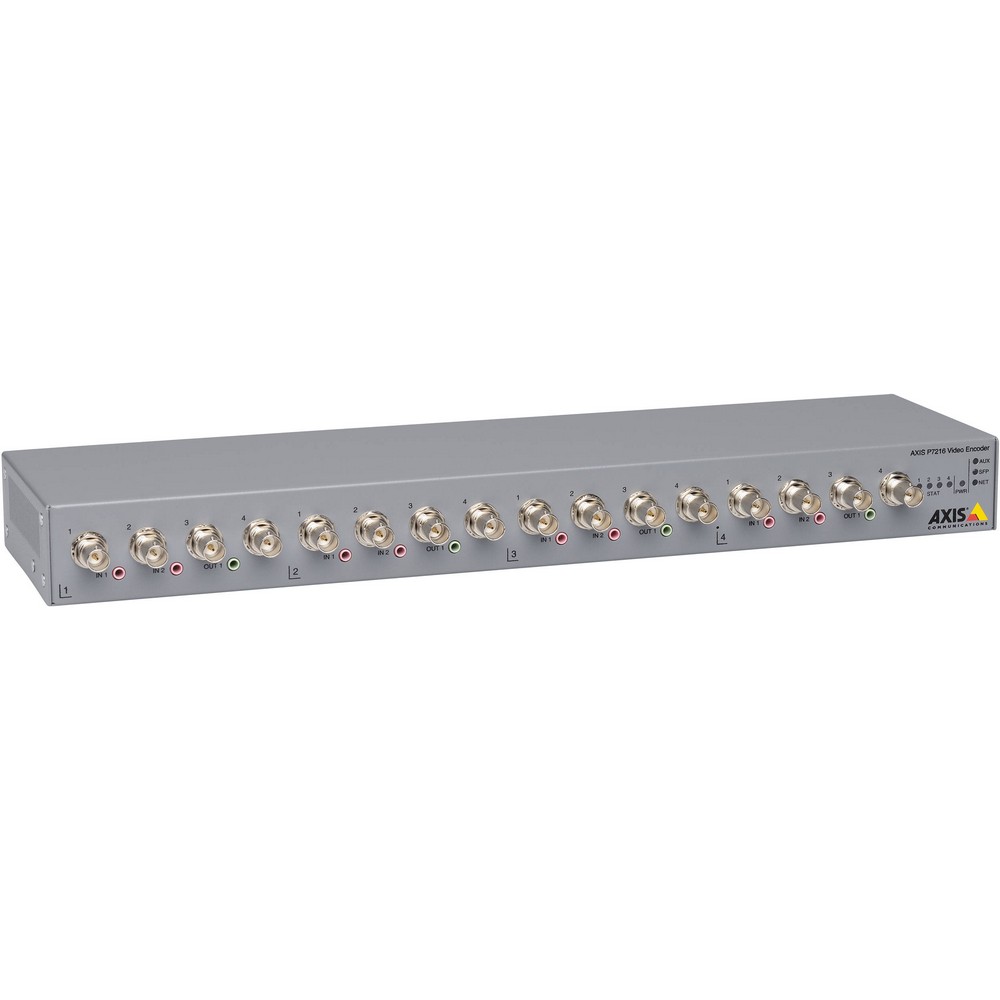

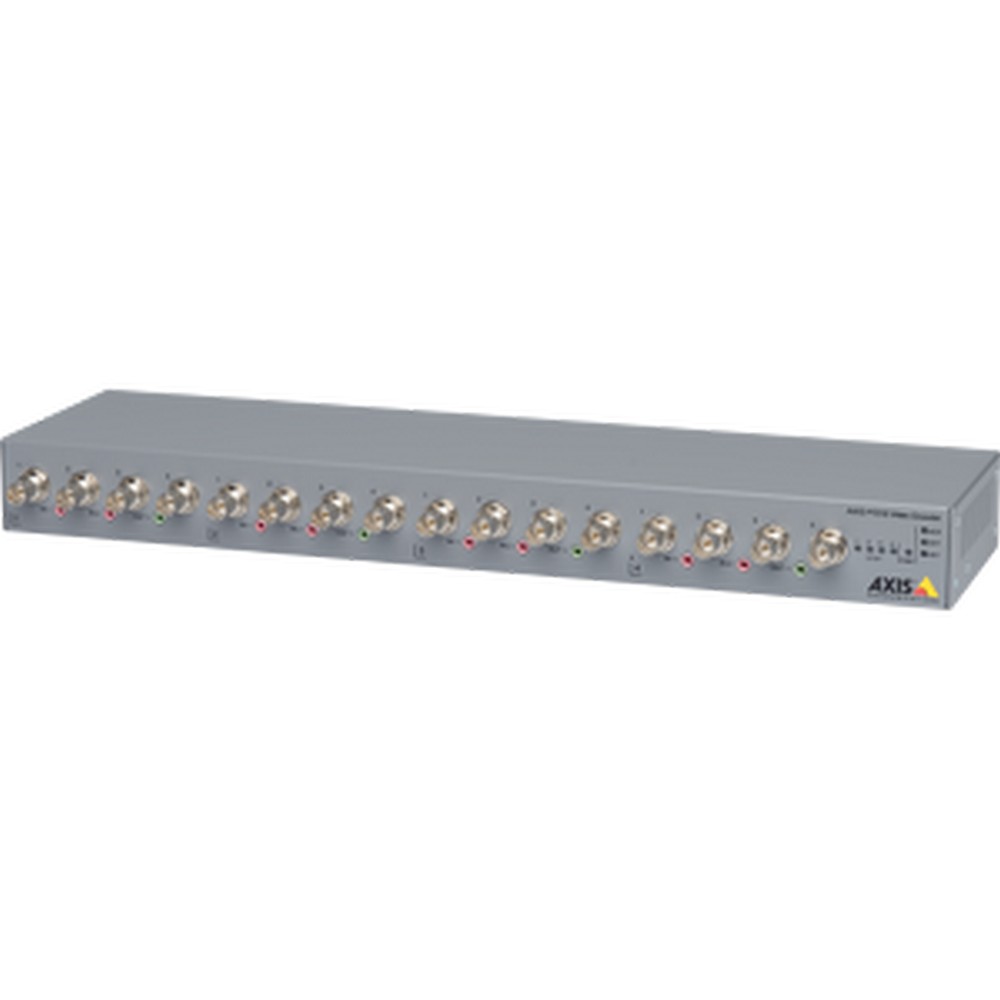

AXIS P7216 Video Encoder

Përshkrimi

• Full-featured, cost-effective 16-channel encoder

AXIS P7216 Video Encoder is a cost-effective 16-channel video encoder with great video performance and excellent audio quality. It can simplify migration to network video without upgrading existing camera systems.

• Powerful and full-featured

AXIS P7216 provides edge storage through four microSDHC memory card slots. The video encoder supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes.

• Full-featured, cost-effective 16-channel encoder

AXIS P7216 Video Encoder is a cost-effective 16-channel video encoder with great video performance and excellent audio quality. It can simplify migration to network video without upgrading existing camera systems.

• Powerful and full-featured

AXIS P7216 provides edge storage through four microSDHC memory card slots. The video encoder supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes.

• The easy way to a smarter CCTV system

AXIS P7216 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered over Ethernet using the same cable as for data transmission, which simplifies installation. A power supply is also included in the package.

• Reduced bandwidth and storage

AXIS P7216 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at full frame rate in resolutions up to D1 (720×480 in NTSC, 720×576 in PAL).

TECHNICAL SPECIFICATIONS

VIDEO

• Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profiles Motion JPEG.
• Resolutions:

• 1536×1152 to 176×120 for quad view.
• 720×576 to 176×120.

• Frame rate:

• Motion JPEG 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution.
• 264 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution.

• Video streaming:

• Multiple streams if identical or limited in frame rate/resolution.
• Controllable frame rate and bandwidth, VBR/CBR H.264.

AUDIO

• Audio streaming: Two-way, full duplex mic/line input 1 or 2/line output.
• Audio compression: In AAC-LC 8 or 16 kHz 8–64 kbit/s G.711 μ-law PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 kbit/s or 24 kbit/s Out G.711 μ-law PCM 8 kHz 64 kbit/s μ-law PCM 16 kHz 128 kbit/s G.726 ADPCM 8 kHz 32 kbit/s or 24 kbit/s.
• Audio input/output: External microphone input or line input, Line level output Audio streaming, record (AU) and play uploaded (WAV, AU) clips AU (G.711 μ-law 8-bit 8/16 kHz mono), WAV (PCM 16-bit 8/16 kHz mono) 8 input, 4 output.

NETWORK

• Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log.
• Supported protocols: IPv4/v6, HTTP, HTTPSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH.

GENERAL

• Casing: Metal casing Standalone, rack mount or wall mount.
• Memory:

• 4x 128 MB Flash.
• 4x 512 MB RAM.

• Power: AXIS PS-P power supply.
• Connectors: 16x Analog composite video BNC inputs, NTSC/PAL auto-sensing 8x 3.5 mm audio input sockets 4x 3.5 mm audio output sockets 1x 1000 Base TX Ethernet (RJ45) 1x auxiliary Ethernet (RJ45) 1x Gbps SFP slot 4x Terminal block for up to 4 configurable external inputs/outputs 4x Terminal block for RS485/RS422 serial communication(full duplex) 1x DC input terminal block.
