VB-H751LE

Axis Communication

VB-H751LE

SKU: CP0000004509 SKU e prodhuesit: 1386C001 Kategori: , , Brand:

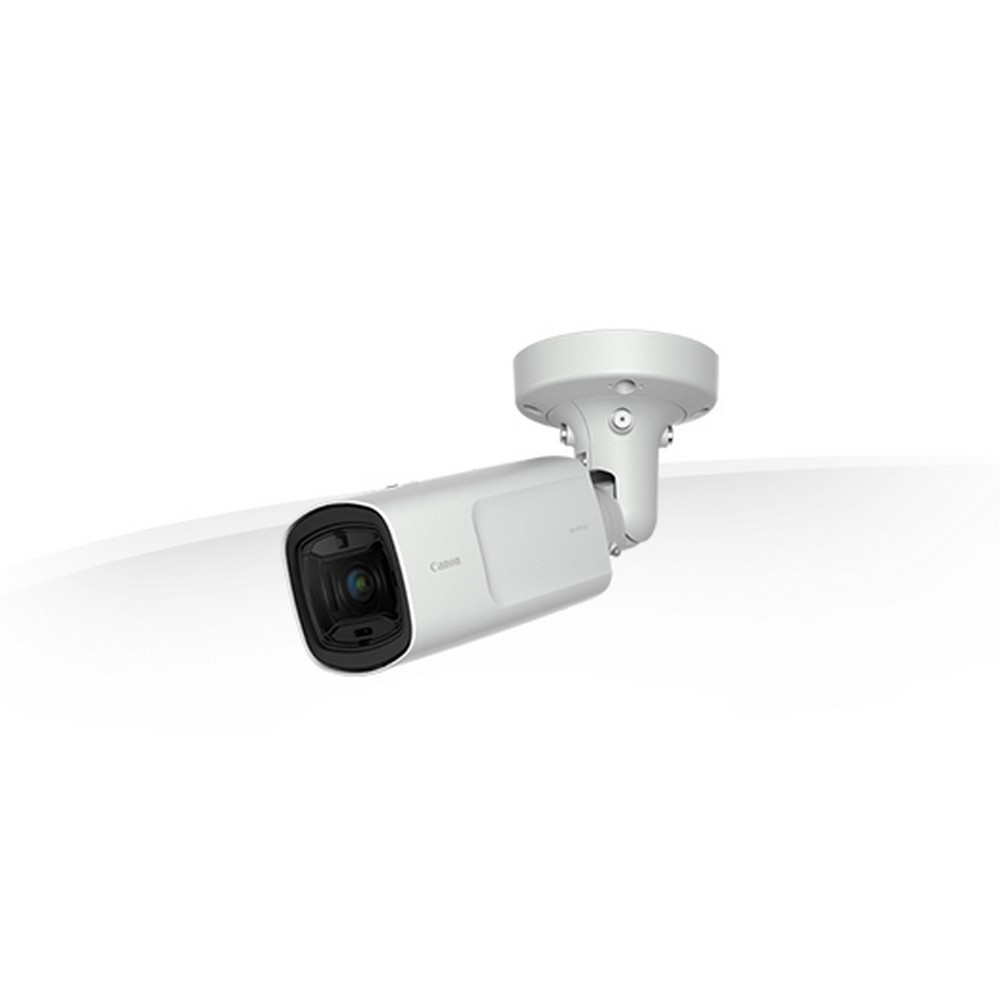

Canon fixed network cameras

High-specification wide-angle IR bullet camera ideal for use in extreme temperatures and zero-light conditions.

Featuring full HD image capture, extensive weather resistance, on-board analytics and stunning low-light imaging.

Key features

  • 1/3” CMOS sensor for Full HD imaging and outstanding low-light performance.
  • Built-in infrared LEDs provides detailed monochrome images up to 30m.
  • IP66 and NEMA250 Type 4X compliance for protection from harsh environmental conditions.
  • Data size reducing and image optimising Motion Adaptive Noise Reduction and Area-specific Data Size Reduction (ADSR) technologies.
  • Intelligent alarm detection with 8 built-in analytic profiles.
  • Configuration and live streaming support across multiple web browsers and mobile devices.
  • ONVIF® Profile S and Profile G compliance.

Datasheet

Out of stock

Përshkrimi

Camera

  • Image Sensor: 1/3 type CMOS (primary colour filter).
  • Number of Effective Pixels: Approx. 2.1 million pixels.
  • Scanning Method: Progressive.
  • Lens: 2.4x optical zoom (4x digital zoom) lens (electric drive).
  • Focal Length: 2.55 (W) – 6.12 mm (T).
  • F-number: F1.2 (W) – F1.8 (T).
  • Viewing Angle:
  • For 16:9 aspect ratios: Horizontal: 124.3° (W) – 50.5° (T) Vertical: 66.9° (W) – 28.4° (T).
  • For 4:3 aspect ratios: Horizontal: 90.6° (W) – 37.9° (T) Vertical: 66.9° (W) – 28.4° (T).
  • Day/Night Switch:  Auto / Day Mode / Night Mode.
  • Min. Subject Illumination: Day Mode (colour): 0.035 lux (F1.2, shutter speed 1/30 sec., SSC off, 50IRE) Night Mode (monochrome): 0 lux / 0.002 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE with IR light on / off).

Server

  • Video Compression: JPEG, H.264.
  • Video Size: JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240.
  • Video Quality: JPEG, H.264: 10 levels.
  • Audio Compression Method: G.711 μ-law (64 kbps).
  • Audio Communication Method: Full-duplex (two-way) – Echo cancellation function compliant RTP, Sound Transfer Protocol by Canon.

Interface

  • Network Terminal:  LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)).
  • Audio Input Terminal: (common for LINE IN & MIC IN):  φ3.5 mm (φ0.14 in.) mini-jack connector (monaural) LINE IN (connect to an amplifier microphone) or MIC IN (connect to a microphone w/o amplifier) – Switch LINE IN/MIC IN in the Setting Page.
  • Audio Output Terminal (LINE OUT): φ3.5 mm (φ0.14 in.) mini-jack connector (monaural) LINE OUT (connect to an amplifier speaker).
  • External Device I/O: Input x 2, Output x 2.

Other

  • Operating Environment: Temperature Operating Temperature Range (including direct sun exposure) AC, PoE+: -50°C – +55°C (-58°F – +131°F) DC, PoE: -10°C – +55°C (+14°F – +131°F) Start-up Temperature Range (including direct sun exposure) AC, PoE+: -30°C – +55°C (-22°F – +131°F) DC, PoE: -10°C – +55°C (+14°F – +131°F) Humidity 5% – 85% (without condensation).
  • Installation Method: Ceiling mount/Surface mount.
  • Power Supply: PoE: PoE power supply via LAN connector (IEEE802.3at Type1/Type2 compliant) AC Adapter: PA-V18 (100 – 240 V AC) (sold separately) External power source: 24 V AC/12 V DC.

Më shumë informacion

Lens 2.55 - 6.12 mm (0.1" - 0.24") F1.2 - F1.8 Autofocus 2.4x optical, 4x digital zoom
Image sensor Progressive scan CMOS 1/3"
Horizontal field of view 124.3deg - 50.5deg
Max. video resolution (pixels) 1920x1080
Day and night Yes
Min. illumination (lux) 0.035 (Color) 0.002 (B/W)
Audio support Two-way
Pan/Tilt/Zoom Digital PTZ
Frames per second (50/60 Hz) 30
Power AC/DC PoE IEEE 802.3at Type 1/Type 2
