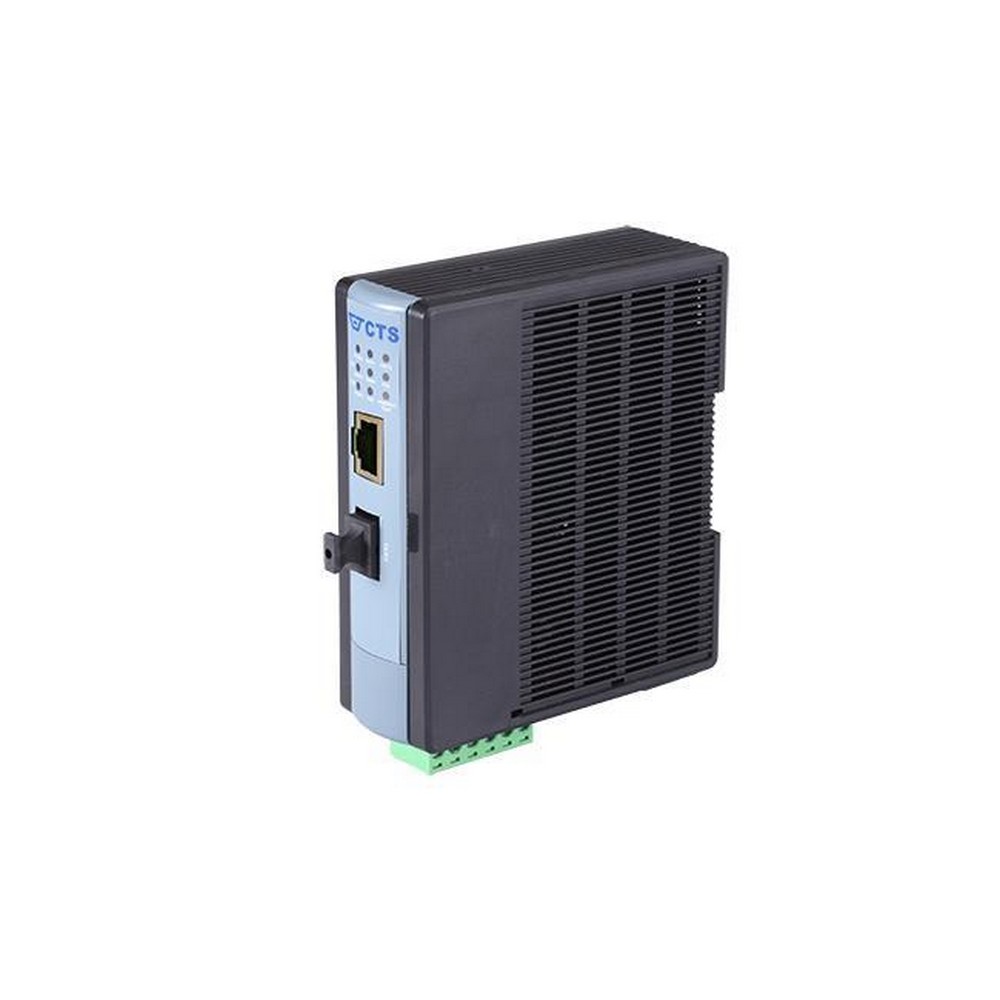

Connection Technology Systems (CTS) WPC-2012 series media converter are the Fast Ethernet 10/100Base-TX to 100Base-FX media converter. The WPC-2012 series media converter converts traditional twisted-pair RJ45 cable into various ‑fiber media including multi-mode, single-mode, SC connector, bi-directional WDM, or a SFP slot for pluggable fiber transceiver. The traditional transmission distance of 100m over RJ45 copper can be extended from 2km to 120km over fiber. WPC-2012 series media converter adopts the brand new ID appearance as well as the well-considered designs for the demand of different customer segments. The flexible power options have either DC power or AC/DC power adaptor to fulfill most of practical deployment scenarios. The extended operating temperature of WPC-2012 media converter is from -20 ℃ to 60 ℃ which makes user install the equipment under critical environment without reliable and stable concerns. It is especially designed for network operators, metro Ethernet providers, enterprise, SMB customer segment, who have the need of implementing fiber optical Ethernet networks over long distance for FTTX solutions with the demand of wide operating temperature, and are looking for an effortless and robust 1000Mbps media converter. WPC-2012 series media converter is fully compliant with IEEE 802.3, 802.3u standards. Besides, it is equipped with some switching features including flow control and store and forward. Additionally, Link Alarm feature enables administrator to monitor the fiber link status in visually and intuitively mechanism.

KEY FEATURES

• IEEE802.3at/af PoE/PSE Support IEEE802.3at/af PoE feature to feed power to remote devices and facilitate the deployment in the power unreachable application.
• Link Alarm Supports link alarm function to help network administrator rapidly managing and recovering network fault.
• Power Redundancy over DC input by Terminal Blocks Support power redundancy over DC input to keep the healthy network connection without power outage risk for general industrial application.
• 9K Bytes Jumbo Frames Support jumbo frame size 9K bytes to ease the network tra­c loading and facilitate IPTV service.

Datasheet
